PND-30-14A-S
PND-30-14A-S Series Parameters Introduction

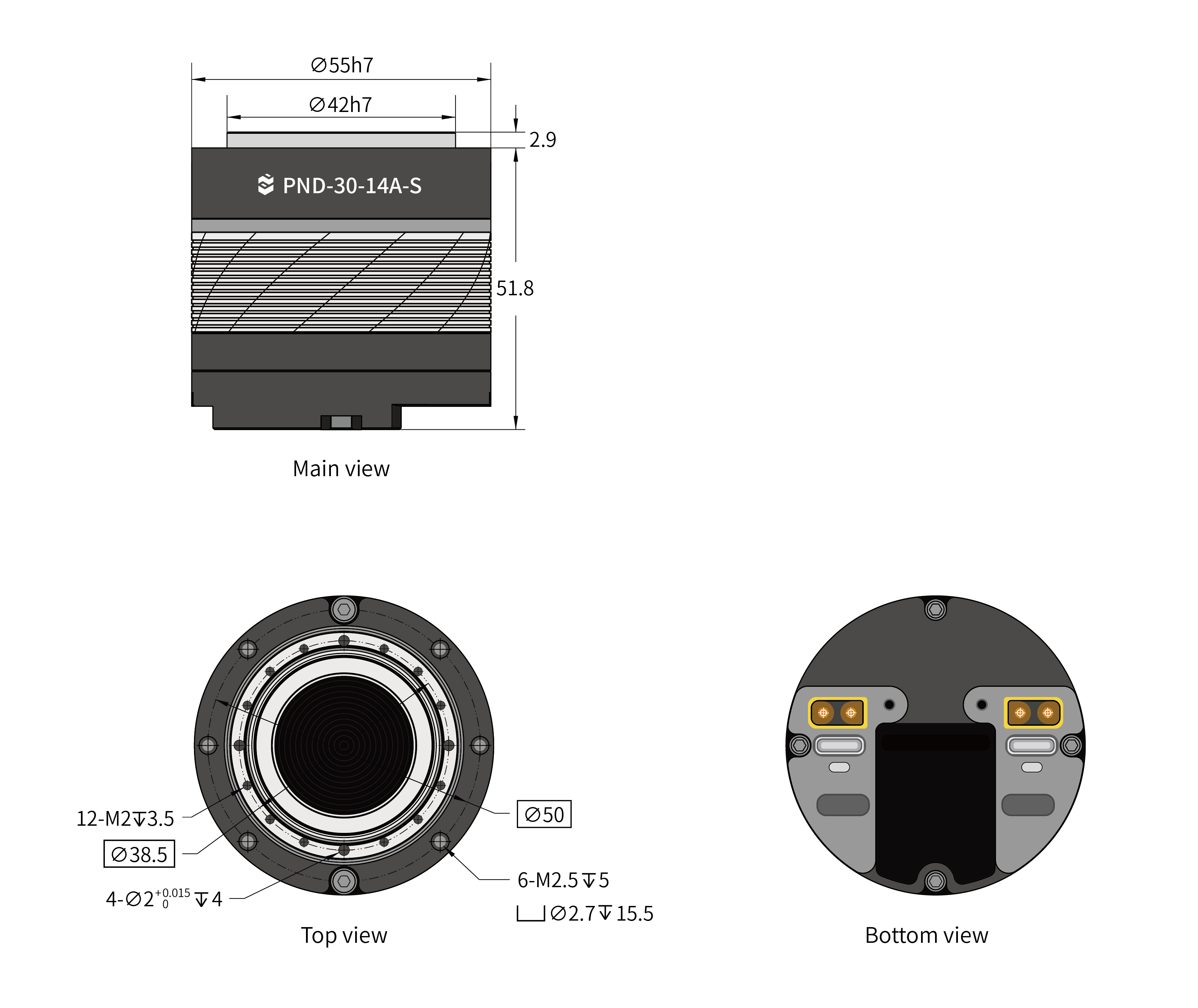

Engineering Drawing
Basic Parameter Table (Motor Output End)
| Motor Parameters | Value | Actuator Parameters | Value |
|---|---|---|---|
| Motor type | Brushless servo motor | Rated bus voltage | 46.5V DC |
| Rated mechanical output power | 96.5W | Rated phase current | 2.5A |
| Rated speed | 5000rpm | Peak phase current | 7.5A |
| No-load speed | 6500rpm | Motor encoder resolution | 4000 Step/turn |
| Rated torque | 0.184N·m | Communication connector | Type-C |
| Peak torque | 0.552N·m | Power connector | XT30 |
| Torque constant | 0.0736N·m/A | Communication protocol | PND-Network |
| Moment of inertia | \(1.63×10^{-5} kg·m^2\) | Operating voltage range | 12~48V DC |
Note
This data is a theoretical value.
Actuator Parameter Table (Actuator Output End)
| Model | Reduction ratio | Rated torque/N·m | Maximum torque/N·m | Rated speed/RPM | Maximum speed/RPM | Torque constant N·m/A | Weight/kg | Rated output mechanical power/W | Maximum output mechanical power/W |
|---|---|---|---|---|---|---|---|---|---|
| PND-30-14A-50-S | 51 | 6.5 | 17.5 | 40 | 47 | 2.6 | 0.4 | 27.2 | 49.5 |
Interface Definition
| Name | Specs |
|---|---|
| Physical layer | 10/100Mbps Ethernet or 2.4GHz Wi-Fi |
| Transport layer protocol | UDP |
| Communication port | (realtime) 2333 |
| Communication port | (service) 2334 |
| IP acquisition method | DHCP/Static IP |
| Application layer protocol | Customized JSON |
The power interface is XT30

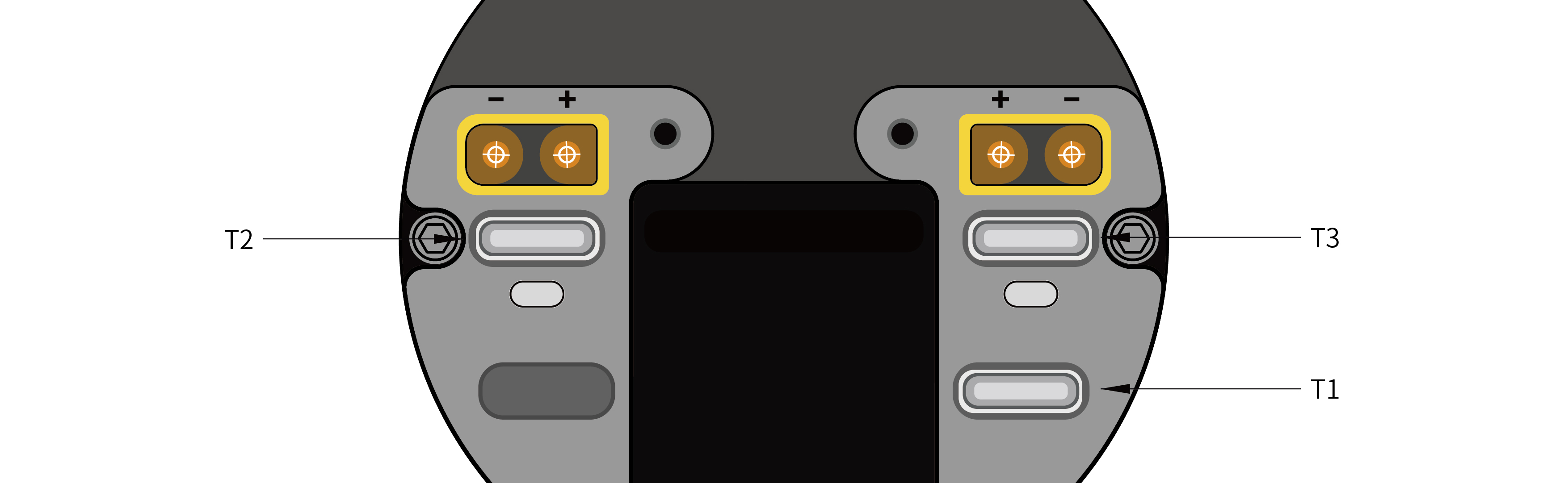

Power/Communication Composite Type - C Pin Definition
Note
The Type-C interface is a special custom interface, not a standard Type-C interface.
| Serial Number | Interface Description | |
|---|---|---|
| Connectors T2 and T3 | B2 | 10/100Mbps Ethernet transmit differential signal TX+ |
| B3 | 10/100Mbps Ethernet transmit differential signal TX- | |
| B10 | 10/100Mbps Ethernet receive differential signal RX- | |
| B11 | 10/100Mbps Ethernet receive differential signal RX+ |
| Serial Number | Interface Description | |
|---|---|---|
| Connector T1 | A1, A12, B1, B12 | GND |
| A4, A9, B4, B9 | 5V | |
| A6, B6 | USB differential signal D+, internally connected to a USB-to-serial chip | |
| A7, B7 | USB differential signal D-, internally connected to a USB-to-serial chip | |
| A2 | 10/100Mbps Ethernet transmit differential signal TX+ | |
| A3 | 10/100Mbps Ethernet transmit differential signal TX- | |
| B10 | 10/100Mbps Ethernet send differential signal RX- | |
| B11 | 10/100Mbps Ethernet send differential signal RX+ |
3D Model

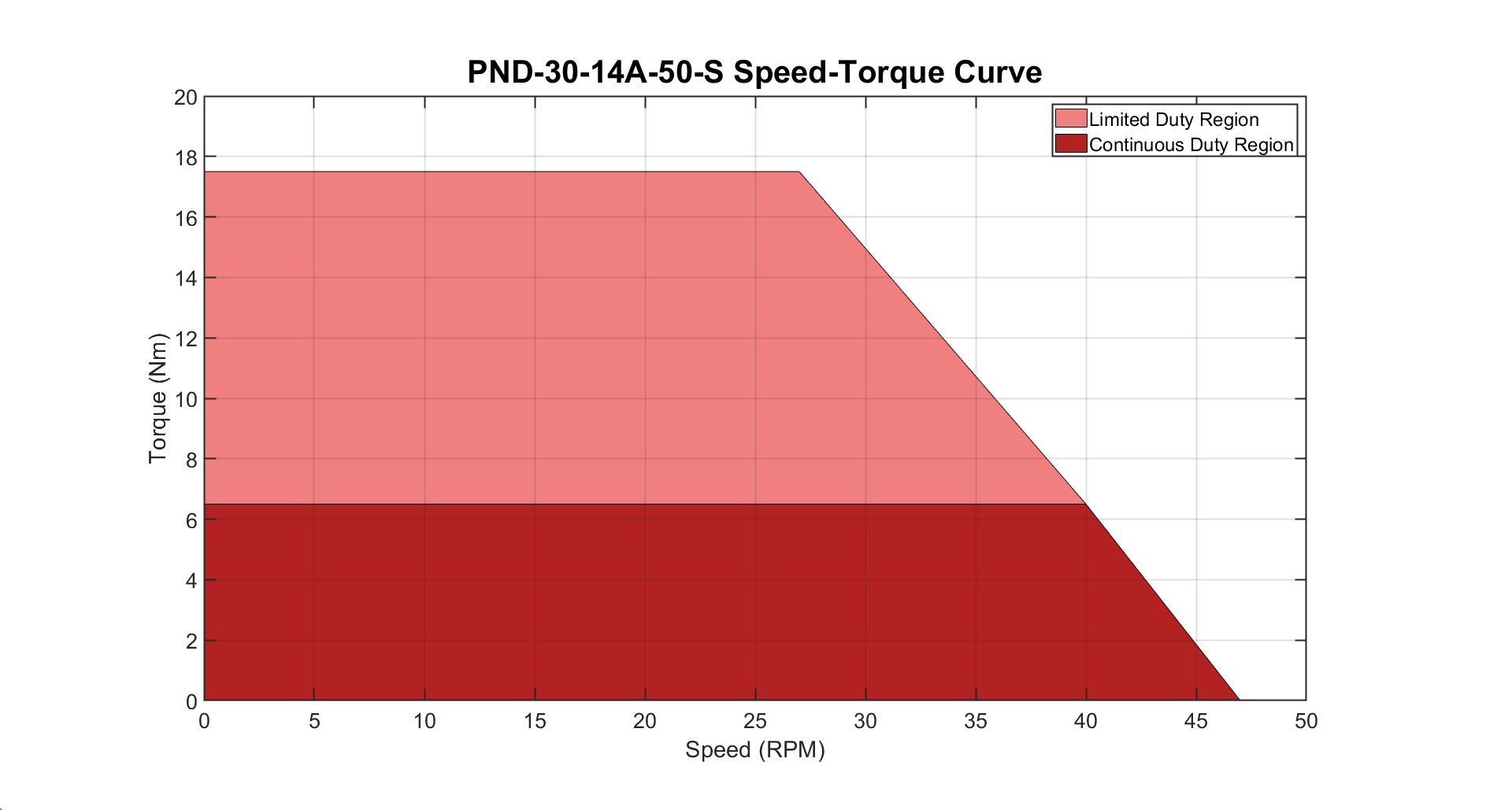

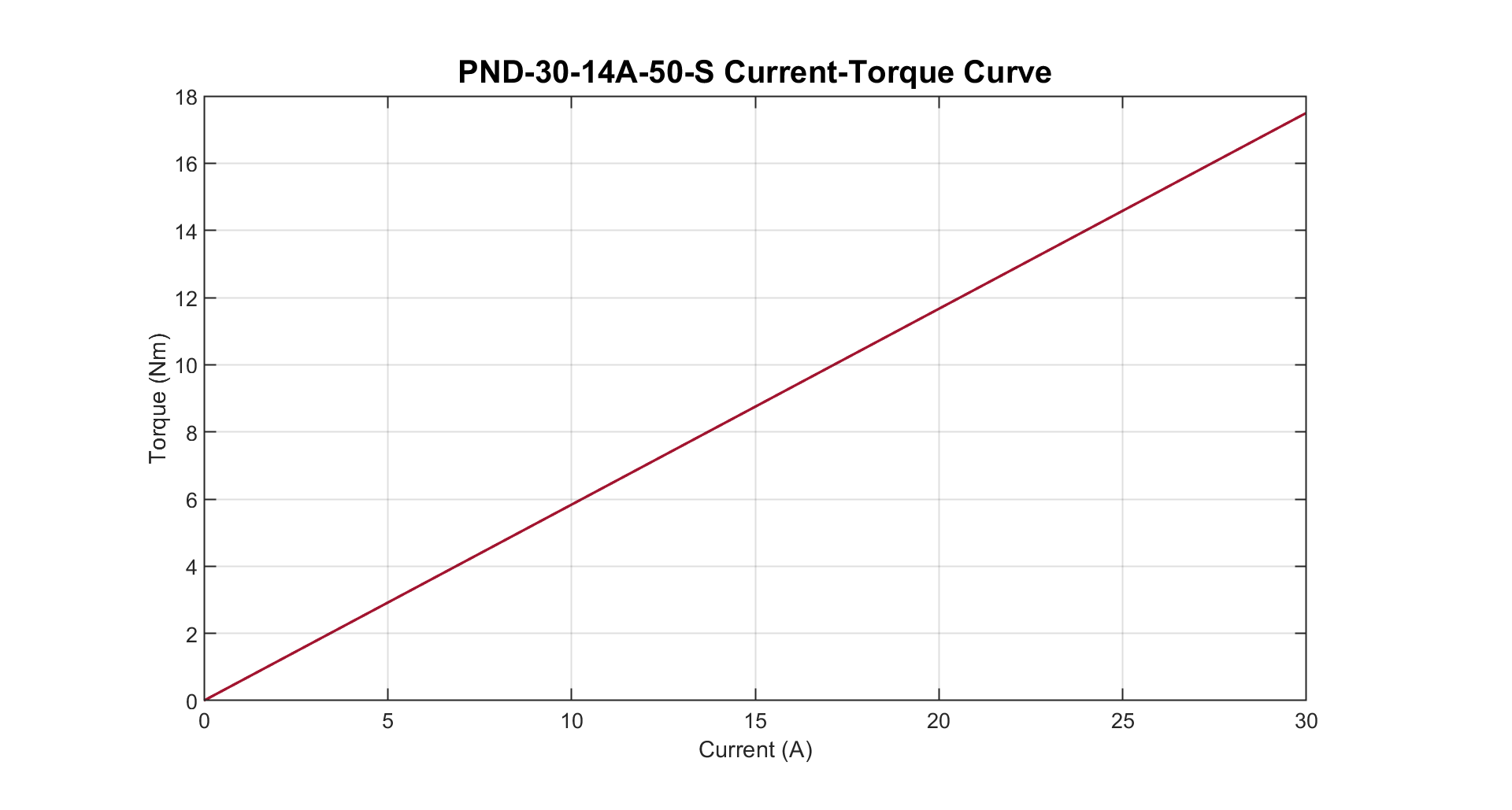

Performance Curve
